Warehouse API Endpoints

1. Introduction

Our API allows external applications to programmatically interact with our warehouse services. This documentation will guide you through the process of making requests and understanding responses.

2. Authentication

All API requests require authentication. We use [HMAC, API Keys] for securing our endpoints.

[HMAC]: Please refer to our authentication document

3. Base URL

All API requests should be made to the following base URL:

https://api.apliiq.com/v1

4. Endpoints

The following table lists the available API endpoints and their functionalities.

Endpoint	Method	Description	Request Body (Example)	Response Body (Example)
/WarehouseItem?SavedDesignedId={saveddesignId}	GET	Retrieve a set of warehouse items by saved design id	N/A	[ { "Id": 1487, "InventoryId": "PI 1487 10", "Name": "Tie Dye Eternity Adult Tee", "Description": "m / Tie Dye Cotton Candy", "Width": 0, "Length": 0, "Quantity": 0, "Type": "merchandise", "PackingType": "NA", "UsageRule": "one-per-merch", "IsActivated": true, "Weight": 16, "WeightUnit": "OUNCES", "HarmonizationCode": "6110202041", "CountryCodeOfOrigin": "US", "SKU": "APQ-3110146S7A1", "SaveDesignId": "3930290356307", "Position": 0 }, { "Id": 1488, "InventoryId": "PI 1488 11", "Name": "Tie Dye Eternity Adult Tee", "Description": "xxl / Tie Dye Cotton Candy", "Width": 0, "Length": 0, "Quantity": 0, "Type": "merchandise", "PackingType": "NA", "UsageRule": "one-per-merch", "IsActivated": true, "Weight": 19, "WeightUnit": "OUNCES", "HarmonizationCode": "6110202041", "CountryCodeOfOrigin": "US", "SKU": "APQ-3110146S2A1", "SaveDesignId": "3930290356307", "Position": 0 }]
/WarehouseItem/?SKU={sku}	GET	Retrieve a specific warehouse item by SKU	N/A	[ { "Id": 1487, "InventoryId": "PI 1487 10", "Name": "Tie Dye Eternity Adult Tee", "Description": "m / Tie Dye Cotton Candy", "Width": 0, "Length": 0, "Quantity": 0, "Type": "merchandise", "PackingType": "NA", "UsageRule": "one-per-merch", "IsActivated": true, "Weight": 16, "WeightUnit": "OUNCES", "HarmonizationCode": "6110202041", "CountryCodeOfOrigin": "US", "SKU": "APQ-3110146S7A1", "SaveDesignId": "3930290356307", "Position": 0 } ]
/WarehouseItem/?WarehouseItemIds={comma separated Ids}	GET	Retrieve link to download all the barcode in single html file	NA	https://blob.apliiq.com/content/_release/barcodes/req-133957833515626598-a78da0d6-a8b2-4731-b42f-d81808f2c5dd-1581_itbc.html
/WarehouseItem/{id}	GET	Retrieve a specific warehouse item by Id	NA	[ { "Id": 1487, "InventoryId": "PI 1487 10", "Name": "Tie Dye Eternity Adult Tee", "Description": "m / Tie Dye Cotton Candy", "Width": 0, "Length": 0, "Quantity": 0, "Type": "merchandise", "PackingType": "NA", "UsageRule": "one-per-merch", "IsActivated": true, "Weight": 16, "WeightUnit": "OUNCES", "HarmonizationCode": "6110202041", "CountryCodeOfOrigin": "US", "SKU": "APQ-3110146S7A1", "SaveDesignId": "3930290356307", "Position": 0, "BarcodeDownloadLink": "https://apliiqsc.blob.core.windows.net/content/_release/barcodes/req-133959035439881552-573ac0d1-07d2-4e73-a718-a0bfe4c5bc96-1487_itbc.html" } ]
/WarehouseItem	POST	Create a new warehouse item	{ "Name": "Test WI XYZ 25-57-27 04:57:59", "Description": "Description of a XYZ Item", "Width": 0, "Length": 0, "Type": "merchandise", "ImageURL":"https://blob.apliiq.com/sitestorage/_release/Overrides/ProductImage/5322789_0647be_113.webp", "UsageRule": "one-per-merch", "IsActivated": true, "Weight": 8, "WeightUnit": "OZ", "HarmonizationCode": "6109.10.00.12", "CountryCodeOfOrigin": "US", "SKU": "XYZ_M_BlueSky", "SaveDesignId": "9999999", "Position": 1 }	1501
/WarehouseItem/{id}	DELETE	Deleting a warehouse item	N/A
/WarehouseItem/{id}	PUT	Activate / Deactivate	{"IsActive": true}

/WarehouseShipment	POST	Create a shipment with items	{ "Items": [ { "Id": 1487, "Quantity": 1 } ], "Factory": "Los Angeles", "Note": "this is a return item" }	{ "Id": 1320, "Items": [ { "Id": 1487, "Quantity_Received": 0, "InventoryId": "PI 1487 10", "Name": "Tie Dye Eternity Adult Tee", "Description": "m / Tie Dye Cotton Candy", "Quantity": 1, "Type": "merchandise", "IsActivated": true, "Weight": 0, "SKU": "APQ-3110146S7A1", "IncludeInTotalAvailableForSale": false } ], "Factory": "Los Angeles", "Note": "this is a return item", "Status": "", "BarcodeDownloadLink": "https://blob.apliiq.com/content/_debug/barcodes/req-133958879070940856-f2eea805-7913-416c-9cc0-c5a4fd39233a-1320_shipmentBarcodes.html", "Name": "SH 1320 018" }
/WarehouseShipment/{id}	GET	Get shipment and its warehouse items	NA	{ "Id": 1316, "Items": [ { "Id": 1497, "Quantity_Received": 5, "InventoryId": "PI 1497 20", "Name": "Tultex Unisex T Shirt", "Description": "xs / Peach", "Width": 0, "Length": 0, "Quantity": 5, "Type": "merchandise", "IsActivated": true, "Weight": 0, "SKU": "APQ-4551796S5A0", "Receiving_Errors": "", } ], "Factory": "Los Angeles", "Status": "", "BarcodeDownloadLink": "https://blob.apliiq.com/content/_debug/barcodes/req-133958870160298787-331b88e6-49e4-451a-b83b-0f11e15005d7-1319_shipmentBarcodes.html ", "Name": "SH 1316 014" }

Notification (on ShipmentComplete)

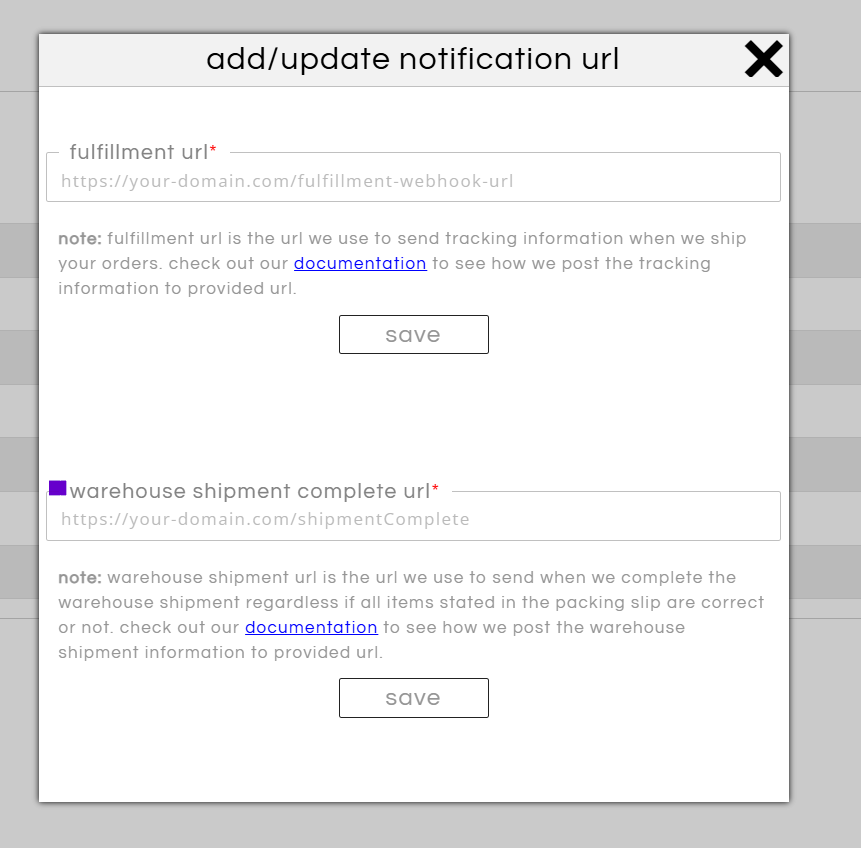

You must set up the shipment complete URL from the UI. You can access this UI from https://www.apliiq.com/verified/stores

If your store has the icon with orange square below.

Header

x-apliiq-appId: [app key] - this app key can be found from the blue rectangle in the above screenshot

Payload we send to the warehouse shipment complete url – all shipments completed that have not been included in previous notification. The payload may contain more than 1 shipment.

[

{

"Id": 1175,

"Name": "SH 1175 04",

"Items": [

{

"ID": 1186,

"InventoryId": "PI 1186 3",

"Name": "black fish sticker 2",

"Type": "pack-in",

"Quantity": 0,

"IsActivated": true,

"Quantity_Received": 10,

"Receiving_Errors": "Items not sellable"

}

]

}

]

*NOTE: the quantity_received (item received by our team) and quantity (quantity expected in the shipment). If there are error during receiving process, the Receiving_Errors field will display the error instead of blank

Warehouse Item Fields definition

Field		Description

Name	Required	Name of the warehouse item
Description	Required if Type = merchandise	Description of the warehouse item. Required if a warehouse item is a merchandise. Recommend describing the item size and color
Type	Required	Merchandise, pack-in, packaging
SKU	Required	Unique merchandise SKU to your store
PackingType	Required if Type = packaging	Possible values: Interior, Exterior
ImageURL	Required	Image path to where Apliiq can download the asset
UsageRule	Required	When Type = merchandise, value is always “one-per-merch” When Type = pack-in, possible values: one-for-every-order one-contains-these-products one-for-every-product One-each-these-products When Type = packaging & PackingType=Interior, possible values: one-for-every-product One-each-these-products when PackingType=Exterior Value must always be one-for-every-order
IsActivated	optional	Default is true, specify false will have warehouse item disabled for order fulfillment
Width	Required if Type = packaging	Width describes in inches
Length	Required if Type = packaging	Length describes in inches
Weight	Required if Type = merchandise	Recommend using oz
WeightUnit	Required if Type = merchandise	Possible values are oz, lbs, kg, g
HarmonizationCode	optional	Recommend if item may be used to fulfill for International Orders
SaveDesignId	optional	Define a group for the warehouse item to be linked under. How to group a set of SKUs.
Position	optional
IncludeInTotalAvailableForSale	Only applicable for shipment creation, NOT for item creation	Default false – ** this field is only applicable when used during creating a shipment and the item quantity to be included in the available calculation

Data Validation Error Type

ItemIsEmty,

Missing_Type,

NoMatch_ItemType_PackIn_Packaging,

Missing_ItemName,

Duplicate_ItemName,

Missing_ItemDescription,

Missing_Weight,

Missing_Weight_Unit

Missing_UsageRule,

Invalid_UsageRule_PerItemType_PackingType,

Missing_SaveDesignIds,

Missing_ImagePath,

Unsupported_Base64Image,

Invalid_ImagePath,

PNG_JPG_WEBP_OnlyImage,

SSLTLSConnIssue,

UnableToGetImageSize,

Max3MBFile,

Missing_PackingType,

NoMatch_PackingType_ExteriorOrInterior,

Missing_ItemWidth,

Missing_ItemLength,

Missing_SKU,

ExceptionCaught

5. Request and Response Formats

All requests and responses use JSON format.

Request Headers:

Content-Type: application/json
Authorization: Refer to authentication document

Response Headers:

Content-Type: application/json

6. Error Handling

Our API uses standard HTTP status codes to indicate the success or failure of a request. In case of an error, the response body will contain an error object with details.

Status Code	Description	Error Response (Example)
200 OK	Request successful	N/A
201 Created	Resource successfully created	N/A
204 No Content	Request successful, no content to return	N/A
400 Bad Request	Invalid request payload or parameters	{ "error": "Invalid input data" }
401 Unauthorized	Authentication failed or missing	{ "error": "Authentication required" }
403 Forbidden	User does not have permission	{ "error": "Access denied" }
404 Not Found	Resource not found	{ "error": "Resource not found" }
500 Internal Server Error	An unexpected server error occurred	{ "error": "Something went wrong on our end" }

7. Support

If you have any questions or encounter issues while using our API, please contact our support team at developer@apliiq.com.
